WeatherXM Pulse
Cellular weather sensing for remote commercial, industrial and agricultural sites where compatible mobile coverage is available.
Pulse pairs the WS1001 outdoor weather station with the WG3000 cellular gateway for deployments that need direct cellular backhaul. Connectivity availability and service terms depend on the current product configuration and deployment region.
System Architecture
How Pulse works
Pairs an all-in-one meteorological unit with a dedicated solar cellular gateway for zero-configuration, autonomous field monitoring.
Outdoor sensor array
All-in-one WS1001 meteorological unit measuring temperature, humidity, pressure, wind speed and direction, solar radiation, UV, and rain.
WG3000 Cellular Gateway
The dedicated solar WG3000 gateway receives sensor telemetry and connects through supported cellular networks according to the configured service.
Direct cellular transmission
Observations are encrypted and transmitted directly to WeatherXM ingestion infrastructure over LTE-M, NB-IoT, and 4G cellular bands.
Data delivery
Data is immediately qualified and available through the WeatherXM mobile app, live Explorer, and WeatherXM Pro cloud API.
Hardware Editions
Network Edition & Open Edition
Both editions use the WS1001 array and WG3000 gateway. Verify current connectivity/service terms and regional availability on the live product page.
Pulse Network Edition
Lower-priced edition for deployments contributing observations under WeatherXM Network rules. Connectivity/service terms and reward eligibility follow the current product and Network rules.
- ✓ WS1001 sensor array + WG3000 cellular gateway
- ✓ Cellular connectivity according to current service terms
- ✓ Network reward eligibility for qualifying contributions
- ✓ WeatherXM Pro cloud API and Explorer access
Pulse Open Edition
Independent-operation edition without a WeatherXM participation commitment. Use it for commercial deployments where the current cellular service and data path fit the project requirements.
- ✓ WS1001 sensor array + WG3000 solar cellular gateway
- ✓ Cellular connectivity according to current service terms
- ✓ No WeatherXM Network participation commitment
- ✓ Independent commercial deployment path
Engineering
Technical specifications
| Outdoor Sensing | WS1001 all-in-one sensor array measuring Temperature (-40°C to +60°C), Relative Humidity (1% to 99%), Barometric Pressure (300 to 1100 hPa), Wind Speed (0 to 50 m/s) and Direction (0–360°), Solar Radiation, UV Index, Rain Rate and Accumulation |
|---|---|
| Gateway | WG3000 cellular gateway with integrated cellular modem and RF receiver |
| Cellular Connectivity | 1NCE global roaming SIM included; supports LTE-M, NB-IoT and 4G fallback across 170+ countries |
| Power System | Outdoor array: solar panel (daytime power) + 2× AA non-rechargeable backup batteries; WG3000 cellular gateway: dedicated solar panel + internal rechargeable battery pack. Engineered for continuous off-grid operation. |
| Data Interval | Regular observation updates transmitted to WeatherXM servers (typically every 15–20 minutes) |
| Configuration | Pre-configured SIM; activates upon power-up and GPS lock |
Packaging

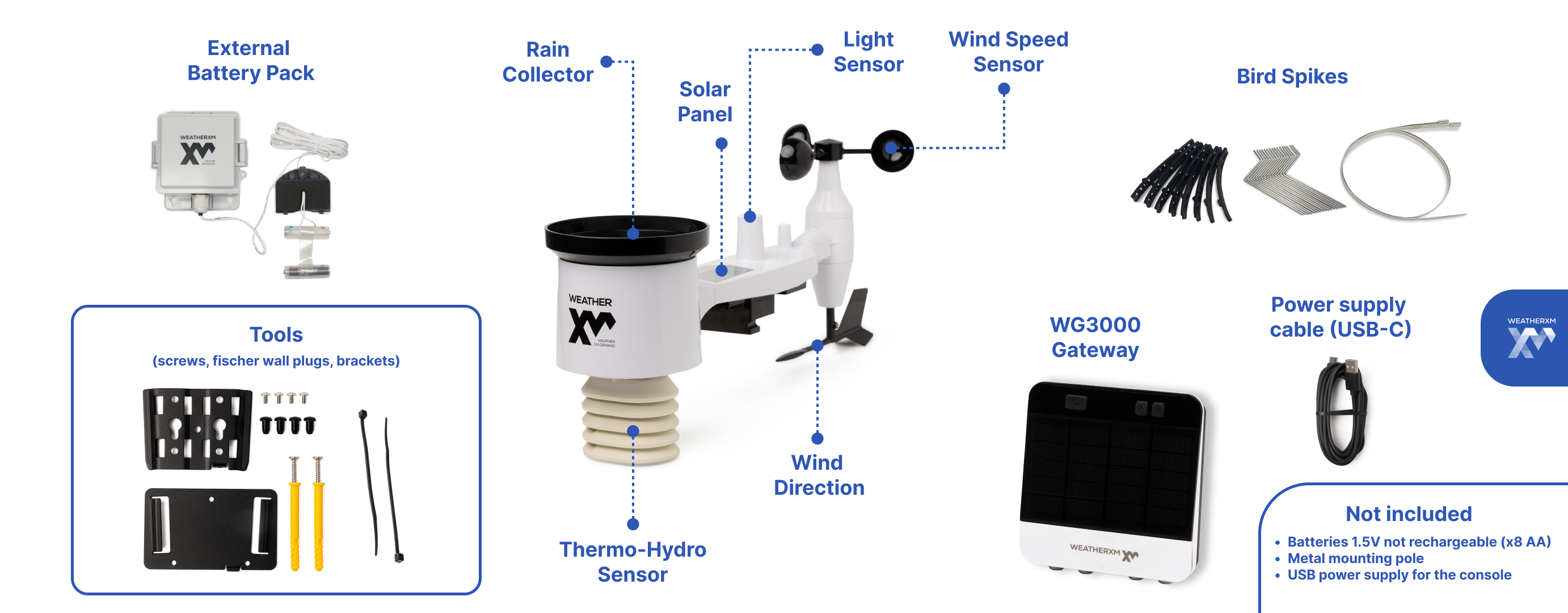

What's in the Box
- • WS1001 outdoor all-in-one sensor array
- • WG3000 cellular gateway with integrated SIM and antenna
- • Mounting brackets and hardware for pole mounting
- • Solar panels and power cables for autonomous operation
- • Setup and activation guide
